PH 3-2½ bollard outdoor lamp

Poul Henningsen designed the three-shade system back in 1925-1926. The first lights using the system were designed by PH in cooperation with Louis Poulsen for an exhibition in Paris. This partnership continued up until his death in 1967. Throughout his life, PH sought to create glare-free light, direct light where it was most needed, and create soft shadows, using incandescent bulbs as a light source. PH 3/2½ Bollard is a member of the three-shade family which numbers 18 lights today, including three for outdoor use. Thus PH did not just design a light, but an entire system – around a thousand different models have been produced over the years. This wide selection consisted of table, floor and wall lamps, as well as a number of different chandeliers, which were very popular in the 30s for lighting private homes from high ceilings. There were countless combination options. The lights were available in different colours, as well as a range of sizes. The first shades were made of metal with a painted undersurface, such as white, gold or silver – depending on whether diffuse, warm or cold light was desired. Glass was later introduced for the three-shade system. In addition to the downward-directed light, glass lamps illuminated the room. PH was the first person to pursue a scientific approach to light and use the logarithmic spiral as a basis. By using a design based on the logarithmic spiral he achieved even distribution of light over the entire curve of the shade. This even light distribution, together with the diffuse reflection through the glass, made it possible to control glare and shadow. Each shade reduces the amount of light equally, due to their distance from the light source. The PH light model numbers refer to the shade size. Each top shade had a corresponding set of middle and lower shades. In the 'pure' models, such as the 2/2, the top shade has a size of about 20 cm, with corresponding lower shades. PH 3/2½ Bollard consists of an approximately 30 cm top shade, but uses lower shades from the 2½ model. These 'hybrid' models were introduced due to the desire to hang pendants at lower heights. PH 3/2½ Bollard was introduced in 2005.

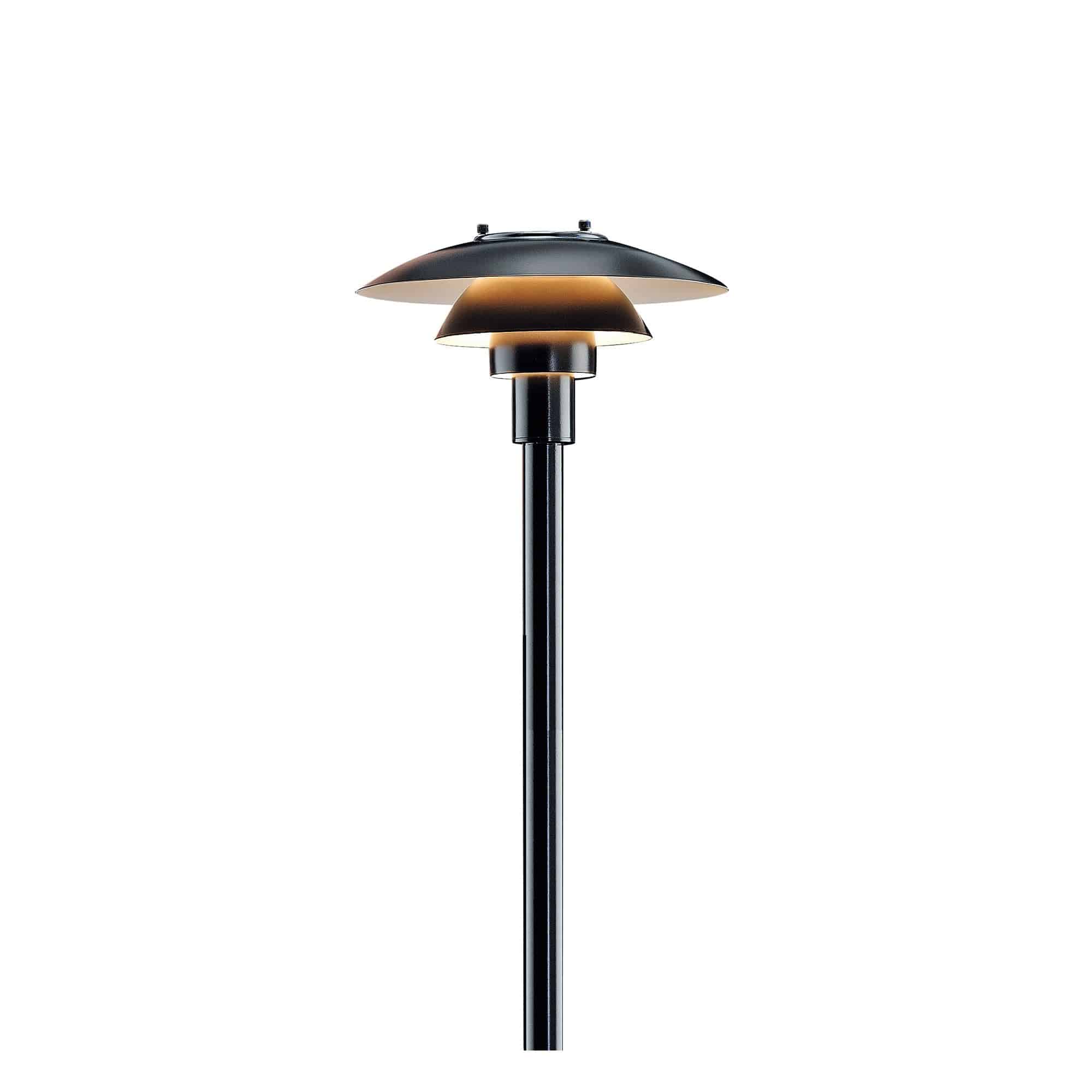

The fixture is designed based on the principle of a reflective three-shade system, which directs the light downwards. The shades have a matt white painted interior surface, diffusing the light in a comfortable way.

Finish: Black, powder coated

Material: Top shade: Spun stainless steel. Middle/lower shade: Spun stainless steel. Shade holder: Form pressed glass. Post: Stainless steel

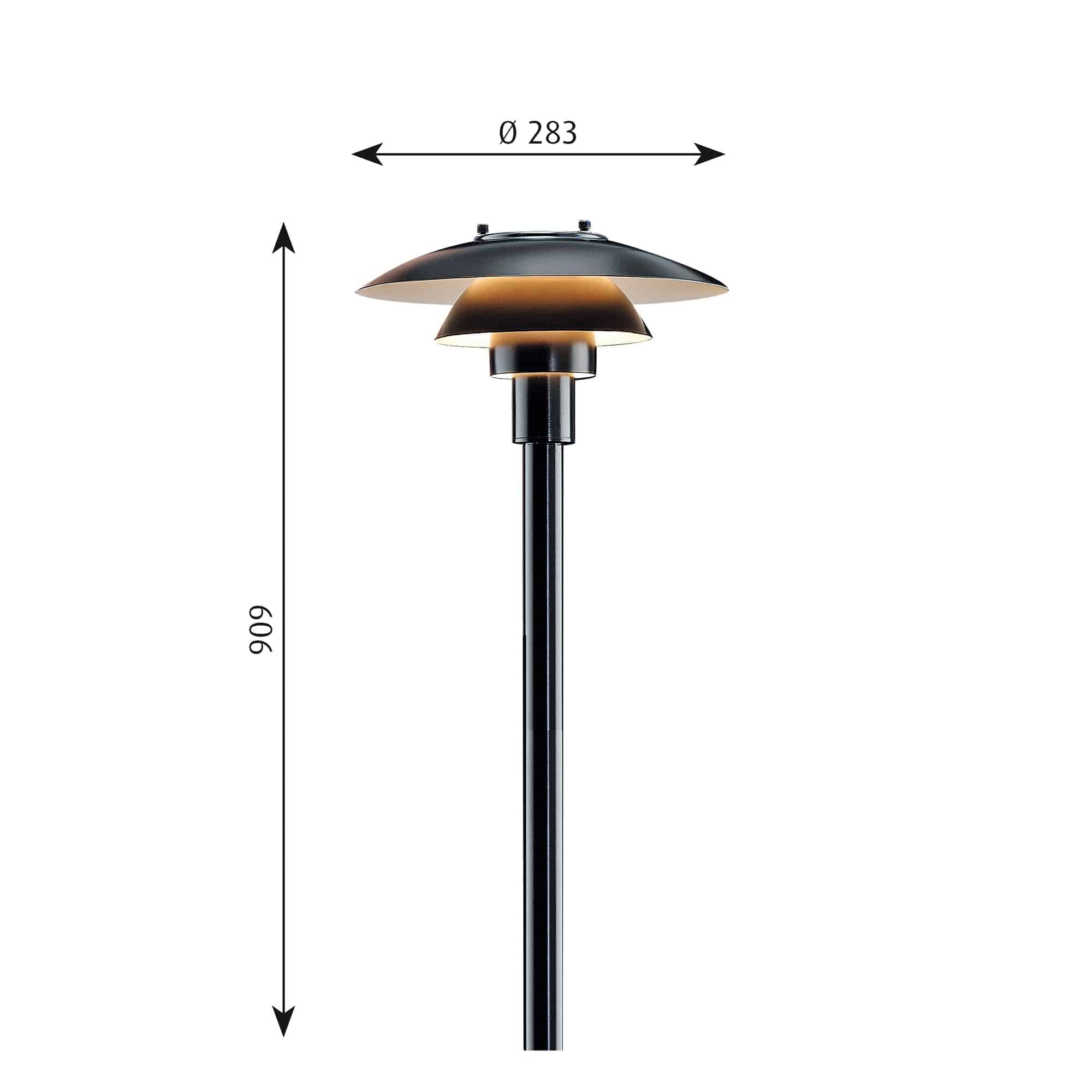

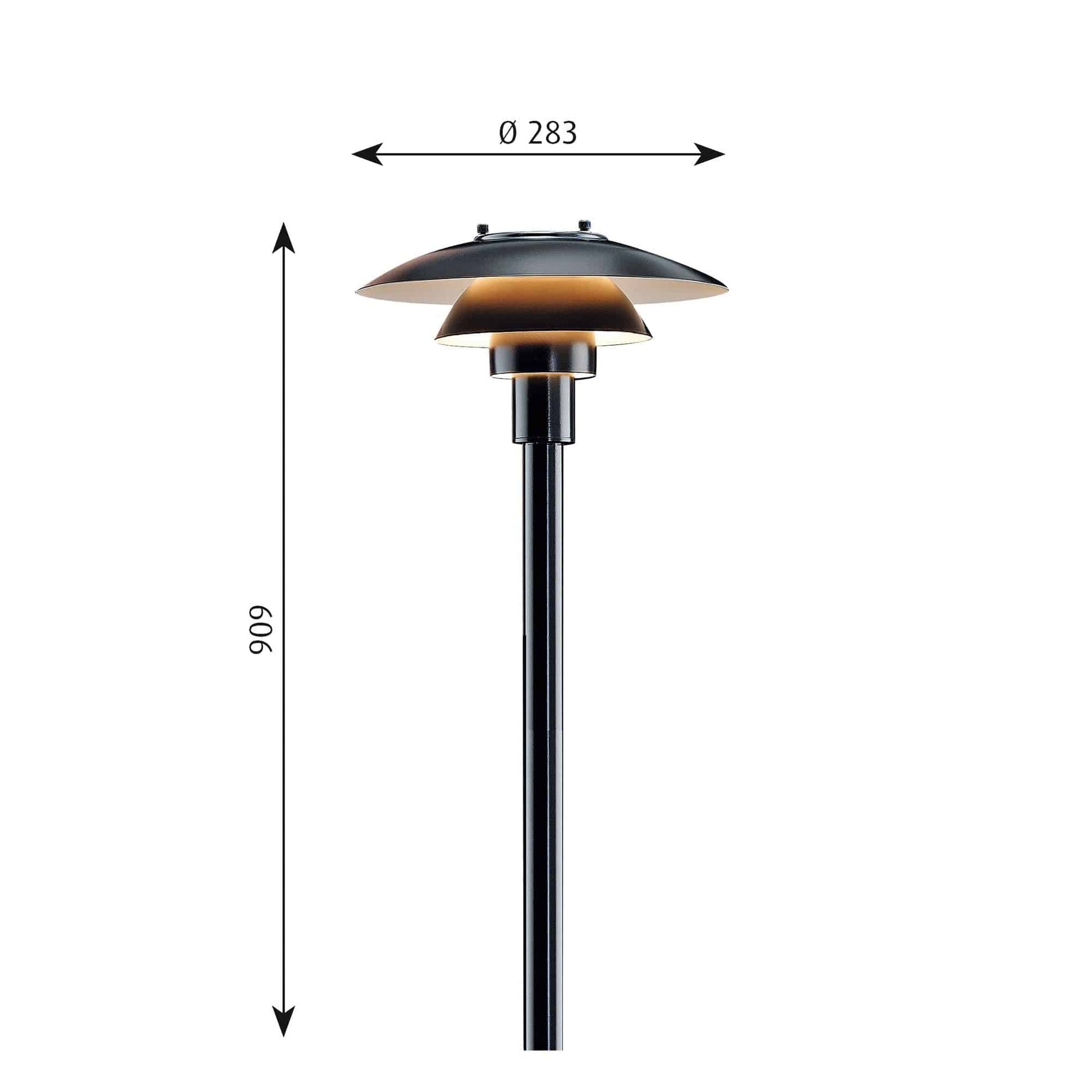

Mounting: Terminal block: 1x5x2.5mm². Terminal block positioning: In post. Cable entries: 2x bottom entries Ø 1.7cm. Looping: Approved, max. 5x2,5mm². Post w/base plate for surface mounting: H: 9.09m incl. fixture head, Post Ø 3.2cm

Class: Ingress protection IP44. Electric shock protection I w. ground

Info notes: Earth anchor to be ordered separately. Anchor bolts to be sourced locally
